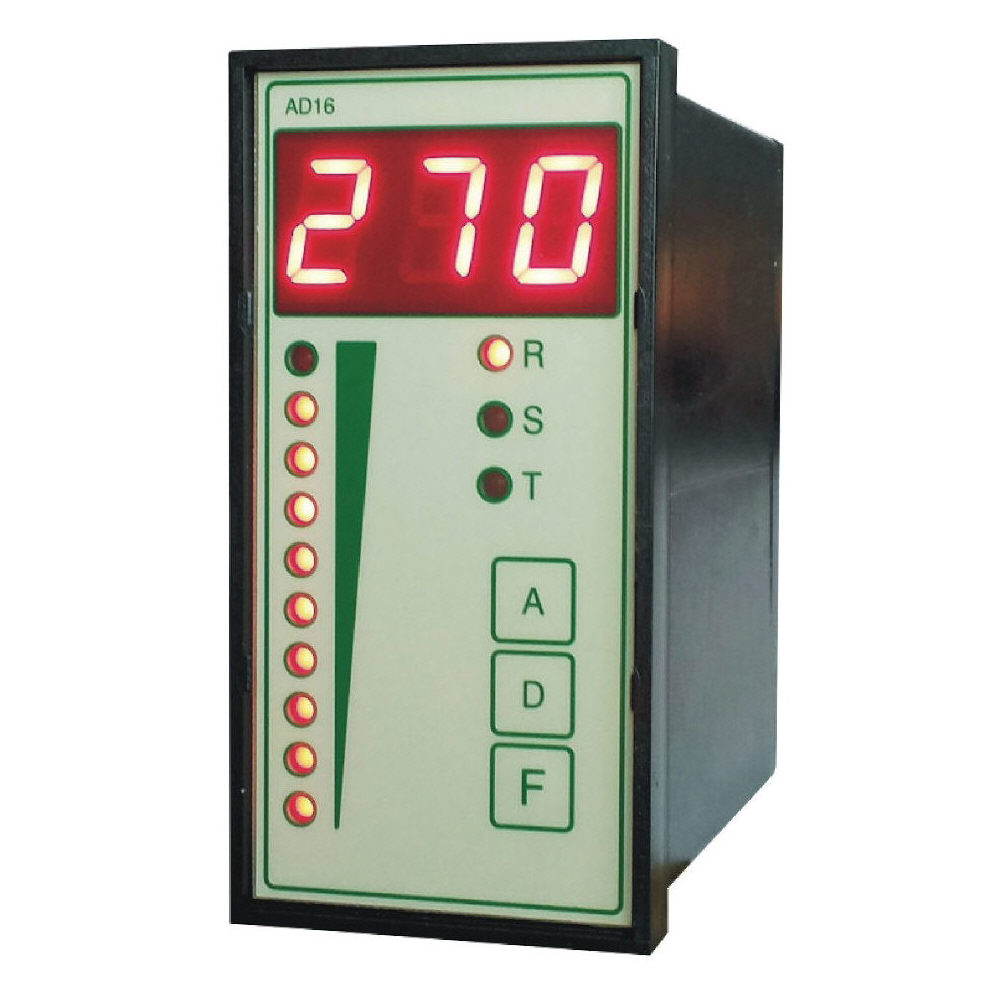

AD16 THREE-PHASE AMMETER

Description

Digital ammeter with microprocessor for the measurement of the line
three-phase current. Single instrument with scan of the three phases
in automatic or manual mode.
The following items are programmable:
The imbalance threshold alarm between phase and phase.
The 10 led bar for distance vision.
The value of current transducers (T.A.).
Technical specifications:
- Power Supply 115 / 230V AC 2VA
- Current Input T.A. X/5 MAX.1000A
   with connection cable min. 2.5mm2
   max. 4 mt from instrument
- Inner impedance of the transducers 0.1 ohms.
- Accuracy +/- 0.5% f.s
- Integrator for cycles (SSR or TPL) max. 1Sec.
- Alarm contact 1A 48V N.O.
