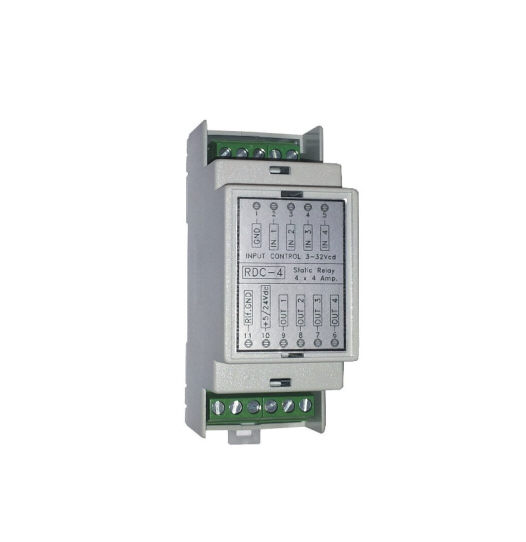

RDC-4

Description

Solid-state relay for switching of resistive and inductive loads with MOSFET technology.
Four-channel control input 3-32Vdc  output 5-24Vdc 4 Amps.

TECHNICAL DATA:
- Range of drive voltage 3-32V dc  2-10mA input
- Range of operating voltage of 5-24V dc
- Rated current 4 amps continuous at 50 ° C
- Capacity peak current for channel  45 Ampere 10ms
- Resistance MOSFET RDS (on) 0.025 Ohms
- Isolation Voltage 4000V
 NB: The device requires the GND (NEGATIVE)
  reference for a good closing of the Mosfet
